The Cable Matters (5-Pack) 1-Port Keystone Jack Surface Mount Box provides a flexible option for installing a network cable on any surface mountable location. It accepts a keystone jack with a standard sized face and a maximum length of 1.4 inches.
Cost-Effective 5-Pack
This convenient 5-Pack provides surface mount boxes for five locations.
Important Notes
Insert the keystone jack with the clip facing down
Maximum length of a compatible keystone jack is 1.4 inches
Maximum cable outside diameter is 8mm
A keystone jack coupler may not have enough clearance because of the cable guide
Feature Filled Surface Mount Box
ABS plastic with UL 94V-0 safety rating
Slide-out insert provides easy installation of a keystone jack
Label space for a printed or hand-written label

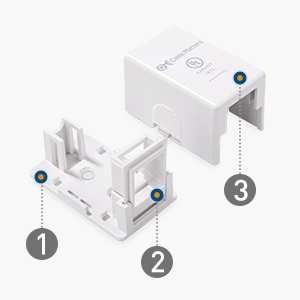

Simple Installation
Connect cable to keystone jack
Snap-in jack to frame insert
Slide frame insert into box
Mount to a solid surface
Specifications
Keystone Jack Blank Port: 1

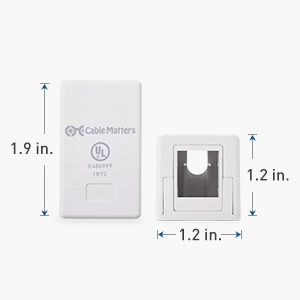

Dimensions (LxHxW): 1.9 x 1.2 x 1.2 Inches
Compliance: C E, RoHS
UL Listed (E486099)

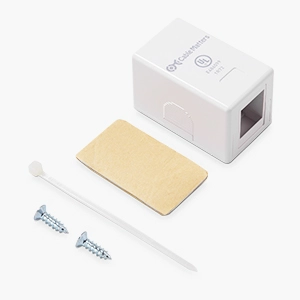

Package Contents
5 x 1-Port Keystone Jack Surface Mount Box
10 x Mounting screws
5 x Double-stick tape
5 x Cable ties
Features
1 port surface mount box houses a keystone jack insert holder for mounting on a solid surface such as a wall, desktop, or office furniture; Upgrade or change the cable type easily by snapping in a new keystone
Simple installation of keystone jack insert blank box includes a slide-out frame for easy insertion of the keystone jack into the box; cable strain relief is provided by a cable guide and a place to connect the included cable tie to secure the cable; Surface mountable with the included screws or double stick tape
Cost effective 5 pack of surface mount boxes accommodates a home renovation project or a new installation of modular furniture in an office
Sturdy construction includes a UL listed (E486099) industry standard flammability rating, cable guides to provide strain relief, and a durable ABS shell that snaps together for a snug and secure installation

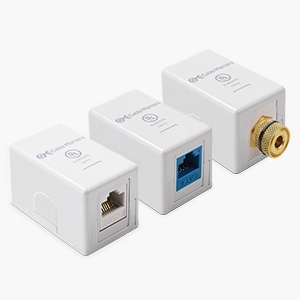

Keystone jack compatible with a standard keystone face up to a maximum length of 1.4 inches; cable guide and surface mount box opening supports a cable with an outside diameter up to 8mm. Compatible with all Cable Matters Keystone Jack including 180014 180079 180025 180005 180070 180065
