The Cable Matters HDMI Extender Receiver Box is the ideal solution for connecting up to 8 displays. This AC powered receiver with repeater chips provides reliable audio and video transmission over much longer distances than possible with a single HDMI cable. Control the video source with a hand-held remote using the included IR cable.
Important Notes
- Receiver Box is only compatible with HDMI Extender Model 103002 (ASIN B00OZV04BK)
- Compatible with an unmanaged, dedicated network switch
- Use shielded cable for longer lengths or in a high RFI/EMI area
Cost-Effective and Easy to Deploy
Plug & Play installation, no software drivers required.
Use existing Cat5/Cat6 cabling.
Extend & split with an inexpensive network switch
Cost effective alternative than using an HDMI matrix or a splitter
Add more displays with additional receivers.
High Definition Video
Supports up to 1080p @ 60Hz.
LCPM, DTS Digital, Dolby Digital audio.
No separate audio cable required.
Compatible with HDCP compliant equipment.
Convenient Remote Control
Includes IR Tx and Rx cables.
Uses your existing HDMI source remote.
Control the video from the display location.
Surface Mountable
Weighs less than 8 oz.
Mounts with included brackets.

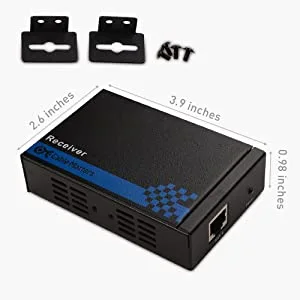

Compact 4 x 3 x 1" footprint
Check for Compatibility
Displays must be connected directly to the Rx box.
The extender is not compatible with HDMI to VGA adapters, HDMI capture cards, or A/V streaming mixers like the Roland Streamer due to HDCP compatibility issues

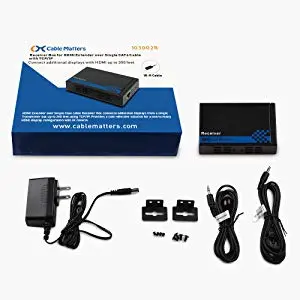

Package Contents
1 x HDMI Receiver.
1 x 5V DC Power Adapter (5').
1 x IR Receiver Cable with adhesive circle (5').
2 x L Mounting Brackets & Screws.
1 x User Manual.
Features
Add additional displays (up to 8 total) to a single HDMI Extender over Cat 6 Transmitter box with TCP/IP through an unmanaged, dedicated Gigabit Ethernet network switch; Receiver box is surface mountable with included brackets and screws
Digital integrity multiplied - additional receiver boxes extend the audio/video HDMI connection up to 300 feet between the Extender Transmitter with a source computer, Blu-ray player, media streamer, or gaming console to an HDMI display HDTV, monitor or projector; Compatible with an unmanaged Gigabit network switch without QoS such as the TP-LINK TL-SG1005D Gigabit Desktop Switch; Lab tested with the TRENDnet 5-Port Unmanaged Gigabit GREENnet Switch TEG-S81g
Control a DVD player or other HDMI video source from a remote location with the included IR cable that forwards commands over a dedicated DDC channel for convenience and security
Vibrant video & authentic audio- supports video resolutions of 1080p/1080i/720p/576p/576i/480p/480i at 50/60 Hz; Supports HDMI High Definition Audio for a full range of audio types, including SACD, DVD-Audio, DTS-HD Master Audio, and Dolby TrueHD
Plug & play installation with AC Powered HDMI Extenders that eliminate voltage drop with low-power HDMI ports to increase the connection distance; Repeater chipset provide auto adjustment of signal feedback, equalization, and amplification for an error-free transmission; Sturdy metal enclosure minimizes EMI/RFI noise interference
