The Cable Matters Cat 6 RJ45 Pass-Through Modular Plugs provide a simple and precise way to terminate UTP stranded cable. Create custom length patch cables in the perfect length for a Gigabit Ethernet application in the home or office. Terminate solid or stranded unshielded twisted pair cable, 23 to 26 AWG, with an outside diameter up to 5.4mm.
High-Performance Connectors in a Cost-Effective 50-Pack
The combination of gold-plated contacts in a clear, sturdy housing provides reliable performance for a Gigabit Ethernet rated network.
Specifications
RJ45 8P/8C with gold-plated contacts
Category Rating: Cat 6
Compatible with 23-26 AWG stranded UTP cable up to 5.4mm OD
Compatible with Strain Relief Boots (B0049QNV3E)
Recommended Pass-Through Crimp Tool (B08LNZ3D1X)
Pass-Through RJ45 8P/8C Connector
1) Feed through for 568A or 568B wiring
2) Corrosion resistant gold-plated contacts
3) Compatible with cables with an outside diameter up to 5.4mm
Designed for Solid or Stranded Cable
1) Mating clip for frequent unplugging
2) 3-Point staggered contact

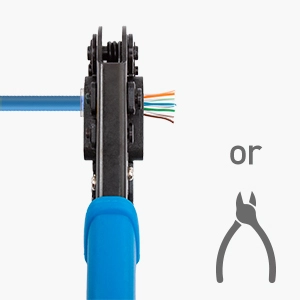

Pass-Through Connector Termination
A crimp tool (ASIN B08LNZ3D1X) designed for pass-through connectors is recommended
A flush cutter can be used to trim the wires, if a tool is not available
Network Patch Cable Termination
Rated to support Cat 6 network cable
Add an SR boot to protect the cable integrity
Mate with a cable strain relief boot (ASIN B0049QNV3E)
Cost-Effective 50-Pack
50 x RJ45 pass-through connectors
Resealable see-thru container
Lid with a convenient carry handle
Features
Cat 6 RJ45 pass through connector terminates unshielded twisted pair cable for making a custom-length Cat 6 Ethernet cable; Supports 23-24 AWG round or flat stranded wire, with 0.97 to 1.07mm insulated conductors and an outside diameter of up to 6.1mm
Crimp style Cat6 pass through connectors terminate solid or stranded cable with a three point staggered contact to provide a secure connection; Simply feed the wires through the openings in the pass thru RJ45 connectors and crimp the connector for a faster termination with less effort
Category 6 performance rated for a Gigabit Ethernet channel compliant network; Backwards compatible with Cat 5e stranded or solid cable; Gold-plated contacts on 8P8C network connectors provide superior transmission and resist corrosion for a Cat6 cable
Cost effective 50-pack of Cat6 connectors provides enough connectors for a large project or multiple small jobs; Construct multiple patch cables in the perfect length for router, patch panel, or workstation applications with this crimp connector; Cat 6 crimp connectors are compatible with Cable Matters RJ45 Strain Relief Boots to protect the clip from accidental damage and bolster the integrity of the cable
Convenient jar storage container protects and stores the Cat6 RJ45 modular connectors until your next project; Screw-on lid with an integrated handle makes it easy to carry the RJ45 ends along to the job site; A lifetime warranty is included with these RJ45 plugs for peace of mind when purchasing
