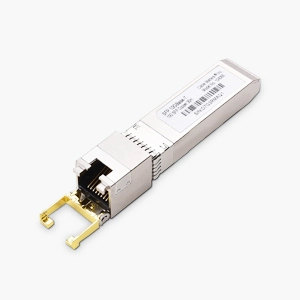

The Cable Matters 10Gbps SFP+ to RJ45 Transceiver Module is rated for the extreme demands of 10 Gigabit Ethernet (10GBASE-T). It is designed for maximum equipment compatibility with SFF-8431, SFF-8432 and IEEE 802.3an 10GBASE-T and 10GBASE-R.
Important Notes
Compatible with MSA compliant equipment with open source EEPROM
NOT compatible with Dell Networking / Juniper / Mellanox / HP / H3C / Arista / Dell Force10 / Extreme / F5 / Mikrotik Networks equipment
Use anti-static protection when connecting or removing the transceivers
Universal MSA Compatibility
Multi-Source Agreement compatible with MSA compliant SFP+ ports
Mechanical Compliance: SFF-8432
Electrical Compliance: SFF-8431
EEPROM Open Source: SFF-8472
10Gbps Application
10 Gigabit Ethernet
Also supports 2.5GBASE-T, 5GBASE-T, and 10GBASE-R
Low EMI emission
Hot-pluggable with ESD protection
Specifications
Up to 10Gbps transfer rates
Up to 30m 10GBASE-T transmission distance with a Cat6A cable (up to 50m with 5GBASE-T and 2.5GBASE-T, and 100m at 1000BASE-T and lower)
Power supply: 3.3V
RoHS compliant
Features

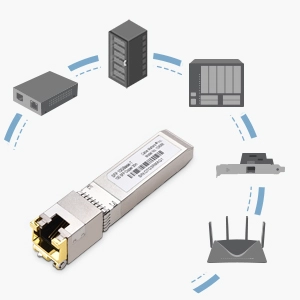

Connects a network switch, server, or NIC with SFP+ to RJ45 10 Gigabit Ethernet network for Network Attached Storage (NAS), Storage Area Network (SAN), and High Performance Computing (HPC) applications
Compatible with MSA compliant equipment from Cisco, Ubiquiti, TP-Link, Huawei, Mikrotik, Netgear, Supermicro
Low power consumption and low EMI emission design SFP+ RJ45 module; Hot-pluggable with advanced ESD protection

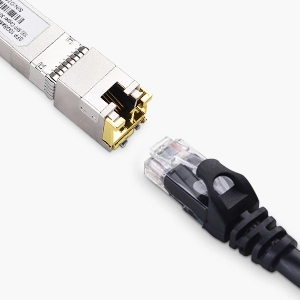

Up to 30m transmission distance for 10GBASE-T 10 Gigabit Ethernet over Cat6A Cable
Backward compatible with 10/100/1000 Ethernet modes and 2.5GBASE-T, 5GBASE-T, and 10GBASE-R
*Upload Speed May Decrease: Upload speeds may be reduced with certain network equipment models when operating at 1000BASE-T, 2.5GBASE-T, and 5GBASE-T configurations.
