PowerRV / Generator Cords
Product ID: 400075-3
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)


Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Cable Matters LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)

LED-Lit 4-Prong 30 Amp to 15 Amp Adapter for Generator 30 Inches (NEMA L14-30P to 2x 5-20R)
Price:
Product Rating:   0

Quantity
Your Price
Interested in ordering in bulk? Click here for instructions on how to register a business account.

Quantity
Out of stockIn stock

1

4-Prong Generator Y-Splitter Cord

The Cable Matters 4-Prong Generator Power Y-Splitter Adapter Cord is an essential accessory for any generator with a 30A locking receptacle. Easily connect 20 amp or 15 amp standard, grounded AC power cords to power your equipment from a generator. The AC outlets have integrated LED lights that are easy to see in low light and verify that the power is flowing. A locking L-14 polarized plug is designed to provide a safe and secure connection.

Important Notes

  • Check that your generator is switched to the 120/240V setting
  • Only 1 leg on the adapter is powered when using a 120V setting
  • Check the outlets on your generator. This is not compatible with a 3-prong locking receptacle
  • Spread the load between the two outlets to avoid overloading

30A to 20 Amp Adapter

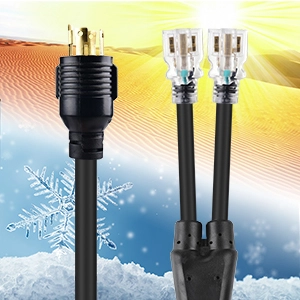

Outdoor Generator Adapter Cord

The weather and oil-resistant STOW 4-conductor cable jacket on this generator adapter cord is rated up to 600 volts to prevent overheating. Heavy-duty 10 gauge copper wire in the cord provides reliable power transmission. Connect to a 30-amp generator receptacle to safely power 120V equipment.

Power Rating:

  • 30A 125V250V 5000W max
  • Each leg supports up to 2500W max
  • Allow for a start-up power spike
  • 2000W is the max recommended watt rating for operation

LED lit power cord

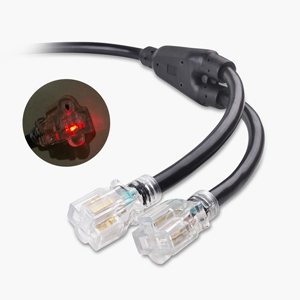

LED-Lit Receptacles

  • LED glows in each receptacle when the cord is powered
  • Polarized receptacles support 15A and 20A cords
  • Spread the load between the two outlets to avoid overloading

Important Note

Check that your generator is switched to the 240V setting. The 240 voltage is split into 120V for each 20A outlet.

L14-30 to NEMA 5-20R

L14

120V or 240V

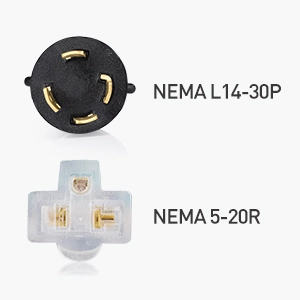

Power Cord Connectors

  • Generator Side: L14-30P Locking Male Plug
  • Equipment Side: 2x 5-20R Female Receptacles

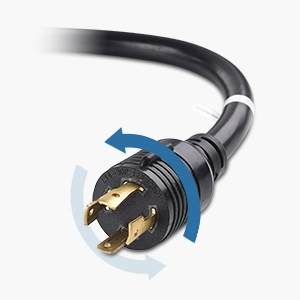

4-Wire Generator Plug

  • 4-Wire (not 3-wire) plug
  • Easy-grip features make plugging and unplugging easier

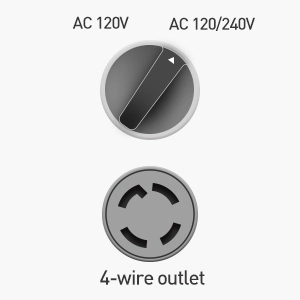

L14 4-Wire Outlet for 120V or 240V

  • Check for a 120V/240V L14-30R outlet
  • Select the 240V generator setting to use both legs of the adapter


Features
  • 15 amp to 30 amp adapter converts a 30A 120/240V locking receptacle on a generator to 2x 5-20R grounded outlets that accept standard NEMA 5-15P or 5-20P grounded cords; Safely power 20 amp equipment such as a refrigerator or a Microwave with this 30 amp generator cord; 30amp to 110V adapter is backwards compatible with 15 amp or less equipment

  • Outdoor rated 30 amp RV adapter with a STOW cable jacket is weather and oil resistant; Flexible 30 amp to 110 adapter with dual 1 foot segments distributes temporary power at a job site or at home

  • Heavy duty 10 gauge 4 conductor 30 Amp RV generator adapter easily supports the maximum current up to 30 amps for connected equipment; LEDs in each outlet verify that the power is flowing; A lifetime warranty and product support provides peace of mind when purchasing this 240V splitter that steps down to 120V

  • Locked & lighted 2 outlet 4 prong Generator adapter has a locking 4 prong L14 30P generator plug and two standard grounded outlets with an LED in each; L14 30 adapter is an essential accessory for RV power at the campsite, contractor power at the job site, or residential generator power at home

  • Portable generator 4 prong adapter is compatible with popular models such as the Champion 7500 watt dual fuel portable generator, DuroMax XP4850ES portable generator, DuroMax Hybrid Dual Fuel XP12000EH, DuroMax XP10000E portable generator, DuroMax XP4850EH portable generator, All Power America 10000 Watt Dual Fuel Generator, Honda EM6500S generator and Westinghouse WGen7500DF generator

    •
